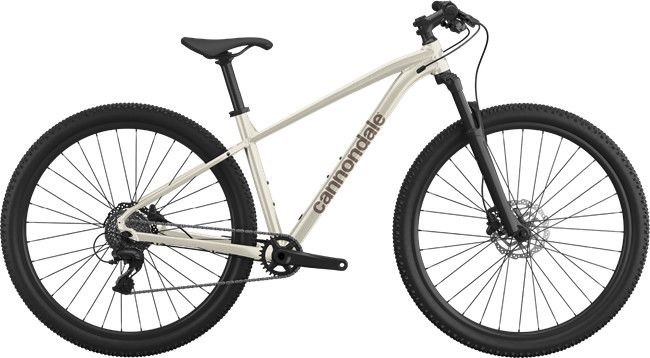

Cannondale Trail 3

Level Up

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.

Model Description

Where versatility meets fun. With a lightweight aluminum frame, bump-smoothing 100mm travel fork, and smooth-shifting 8-speed gearing,this rugged hardtail is equally at home on streets and trails.

What it's for

Singletrack exploration, around town cruising, and multi-surface exploration

Highlights

• Light and durable SmartForm C3 Alloy frame
• SR Suntour XCM suspension fork, 100mm travel
• microSHIFT Acolyte 8-speed gearing with trigger-style shifter
• Powerful Tektro mechanical disc brakes

  Specs

  Details

  • Platform

    Trail
  • Model Name

    Trail 3
  • Model Code

    C2601GU

  Frameset

  • Frame

    Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
  • Fork

    SR Suntour XCM , coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
  • Headset

    Semi-Integrated, 1-1/8"

  Drivetrain

  • Rear Derailleur

    microSHIFT Acolyte, 8-speed
  • Shifters

    microSHIFT Acolyte, trigger-style, 8-speed
  • Chain

    KMC X8, 8-speed
  • Crank

    Prowheel, Charm 30T
  • Rear Cogs

    microSHIFT, 12-42, 8-speed
  • Bottom Bracket

    ProWheel, square taper

  Brakes

  • Brakes

    Tektro M280 mechanical disc, 160/160mm rotors
  • Brake Levers

    Tektro RS360A mechanical disc

  Wheels

  • Rims

    WTB SX19, 32h
  • Spokes

    Stainless Steel, 14g
  • Tire Size

    2.25
  • Wheel Size

    27.5/29
  • Hubs

    (F) Formula DC-51, 15x100mm / (R) Formula DC-1422, 12x142mm
  • Tires

    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)

  Components

  • Handlebar

    6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
  • Stem

    6061 Alloy, 31.8, 8°
  • Grips

    Cannondale Push On
  • Saddle

    Cannondale Trail
  • Seatpost

    6061 Alloy, 31.6x400mm

  Please note that, based on component availability and other factors, specifications are subject to change without notice.
